D-DL4CV-Lec18-Videos

Videos

Introduction

A video is a sequence of images, it can be expressed as 4D tensor

$$T\times 3\times H\times W$$

Tasks

In image classification, we want to recognize objects. However, in video classification, we want to recognize actions

Problem & Solution

Problem: Videos are bigggg!!!

Size of uncompressed video are very big. For example:

SD (640 x 480): ~1.5GB per minute HD (1920 x 1080): ~10GB per minute

Solution

We train on short clips of the videos: low fps and low spatial resolution

For example: We might want to turn the video into 5 fps with size $H=W=112$

---

Intuitive Video Classification Model

Single Frame CNN

D-DL4CV-Lec18a-Single-Frame_CNN

Late Fusion (with pooling)

D-DL4CV-Lec18b-Late_Fusion

Early Fusion

D-DL4CV-Lec18c-Early_Fusion

3D CNN (Slow Fusion)

Introduction

Just grow a new dimension from 2D CNN

C3D: The VGG of 3D CNNs

D-DL4CV-Lec18d-C3D

Comparison: 2D Conv (Early Fusion) vs. 3D Conv (3D CNN)

D-DL4CV-Comparison-2D_Conv-3D_Conv

---

Recognizing Actions from Motion

Idea

Human can easily recognize actions using only motion information, so we want a way for the computer to identify motions from the video

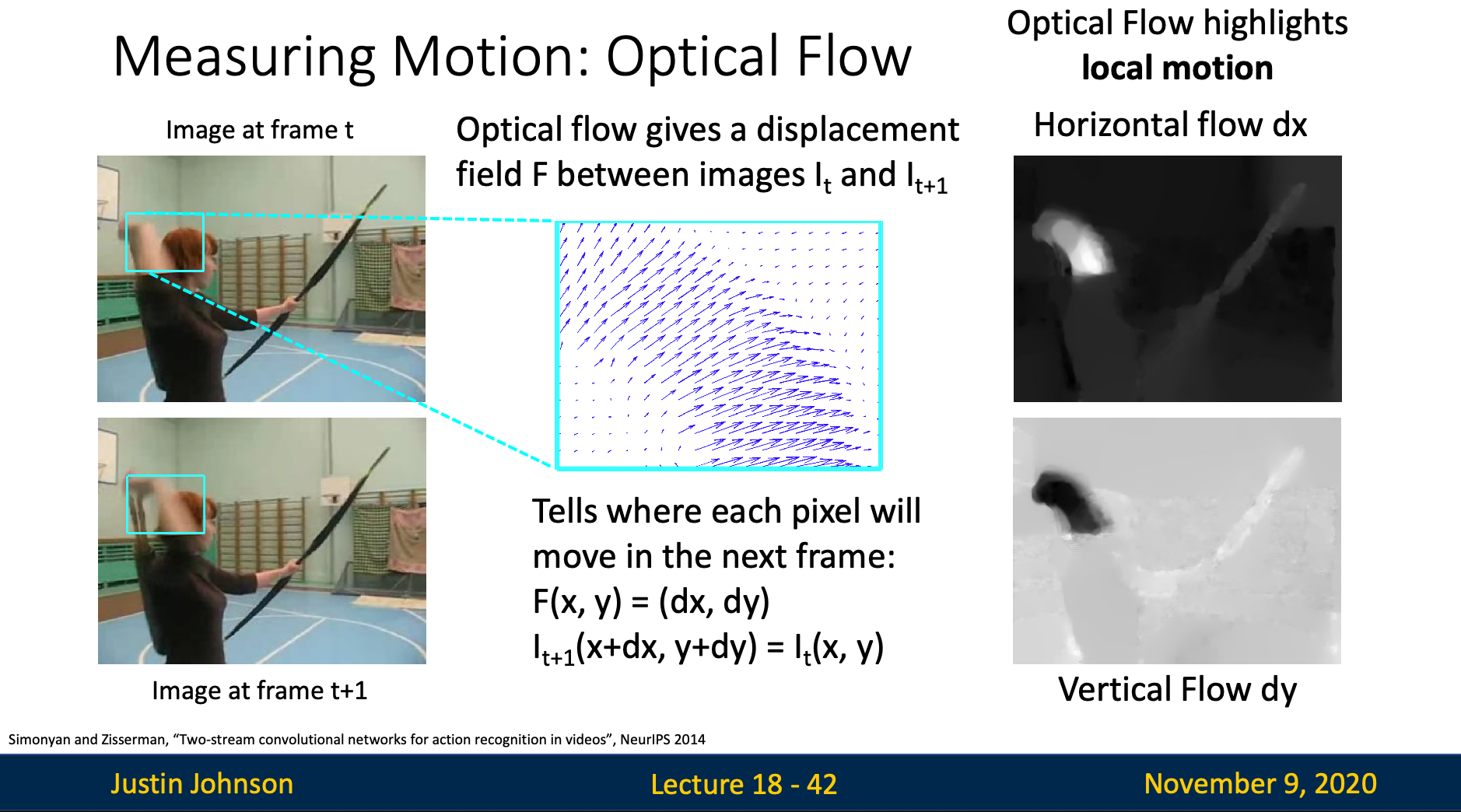

Measuring Motion: Optical Flow

We create a displacement field $F(x,y)=(dx,dy)$ between two frames $I_t$ and $I_{t+1}$, it tells us where each pixel will move in the next frame

$$I_{t+1}(x+dx,y+dy)=I_t(x,y)$$

該等式的意思是時間為 $t$ 時在 $(x,y)$ 的像素在 $t+1$ 時移動到了 $(x+dx,y+dy)$

Two-Stream Networks

D-DL4CV-Lec18e-Two-Stream_Networks

---

Modeling Long-Term Temporal Structure

Task Description

Before this section, we only discuss how to process short clip, which means that we only care about dealing with small temporal dimension. Now, we want to find ways to process long videos

CNN + RNN & RCN

D-DL4CV-Lec18f-RCN

Spatio-Temporal Self-Attention (Non-Local Block)

D-DL4CV-Lec18g-self-attention

---

Inflating 2D Networks to 3D

Motivation

We already have many trained network for image classification. Is there a way we can do something to image classification model so it works on video classification also

Solution: Inflate 2D Model

Suppose each Conv/Pool in 2D CNN has the dimension $K_h\times K_w$

Then we can duplicate the layer in third dimension for $K_t$ times, which we’ll get layers for 3D CNN with dimension $K_t\times K_h\times K_w$

However, if there’s a video where every frame is the same image, we want the output of 3D CNN on this video same as that in 2D CNN. Hence, we divide every element in the layer with $K_t$
